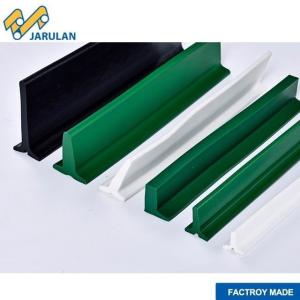

Inclined conveyors occasionally require belts with profiles or cleats (flights) on the carrying surface.
These prevent slippage of the conveyed material and increases the belt capacity.
The type and height of the most suitable cleat (flight) is determined according to the characteristics of the conyeved material and the inclination of the conveyor. Optimum conveying capacity can be achieved up to angles of 70º by this means.
| Cross Section of cleat types | MATERIAL | TYPE | Color | Temperature (℃) | Min. Turning Diameter (mm) |
|---|---|---|---|---|---|
 | PVC | T10 | white/green/blue/black white/green/blue/black | -10/+70 | 40 |
| PVC | T20 | -10/+70 | 90 | ||
| PVC | T30 | -10/+70 | 120 | ||
| PVC | T40 | -10/+70 | 120 | ||
| PVC | T50 | -10/+70 | 120 | ||
| PVC | T60 | -10/+70 | 150 | ||
| PVC | T70 | -10/+70 | 160 | ||
| PVC | T80 | -10/+70 | 180 | ||
| PVC | W35 | -10/+70 | 130 | ||
| PVC | X50 | -10/+70 | 150 | ||
| PVC | X60 | -10/+70 | 150 | ||
| PVC | X70 | -10/+70 | 180 | ||
| PU | T20 | -20/+80 | 60 | ||
| PU | T30 | -20/+80 | 60 | ||
| PU | T40 | -20/+80 | 60 | ||
| PU | T60 | -20/+80 | 80 | ||
| PU | Z120 | -20/+80 | 300 | ||
| PU | Z120 | -20/+80 | 300 | ||
| PU | Z120 | -20/+80 | 300 |
Other specifications can produce according to clients.
